PoE Switches

Provides power and data to the connected device simultaneously
and controls the device remotely

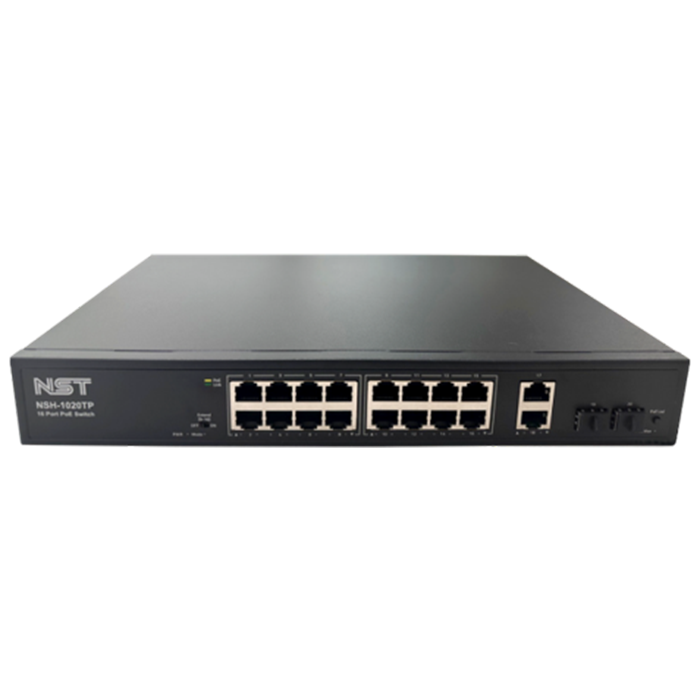

NSH-1020TP

  • UTP Port
    UTP Port
    16GE
  • Optical
    Port
    Optical Port
    2 Ports 100/1000Base-X SFP port
    2 Ports 10/100/1000Mbps RJ-45
  • Management
    Management
    Managed
DATASHEET MANUAL REPORT CAD



Specifications

Specifications
item Descriptions
Interface 16 Port 10/100/1000Base-T PoE, RJ45
2 Port 10/100/1000Base-T Uplink
2 Port 100/1000Base-X Uplink
Network Protocol IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
IEEE 802.1d, IEEE 802.1q, IEEE 802.1p
IEEE 802.3af/at
Switching Capacity 40 Gbps
Throughput 29.7 Mpps
MAC Address 1K
Memory 12Mbit
LED PWR, Port Link/Act, PoE
ModeA :1/2(DC +), 3/6(DC -), ModeB 지원
30W, IEEE802.3af/at 지원
AC100 ~ 240VAC, 50~60Hz
POE 240Watt
